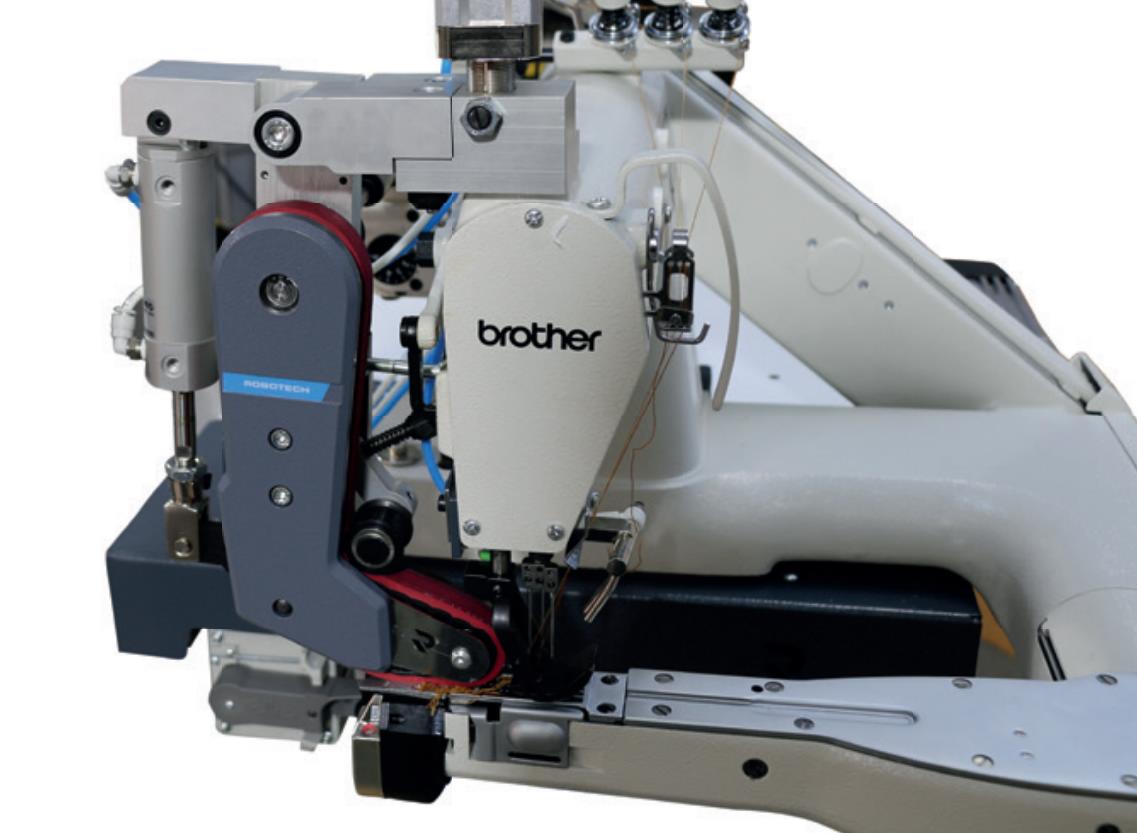

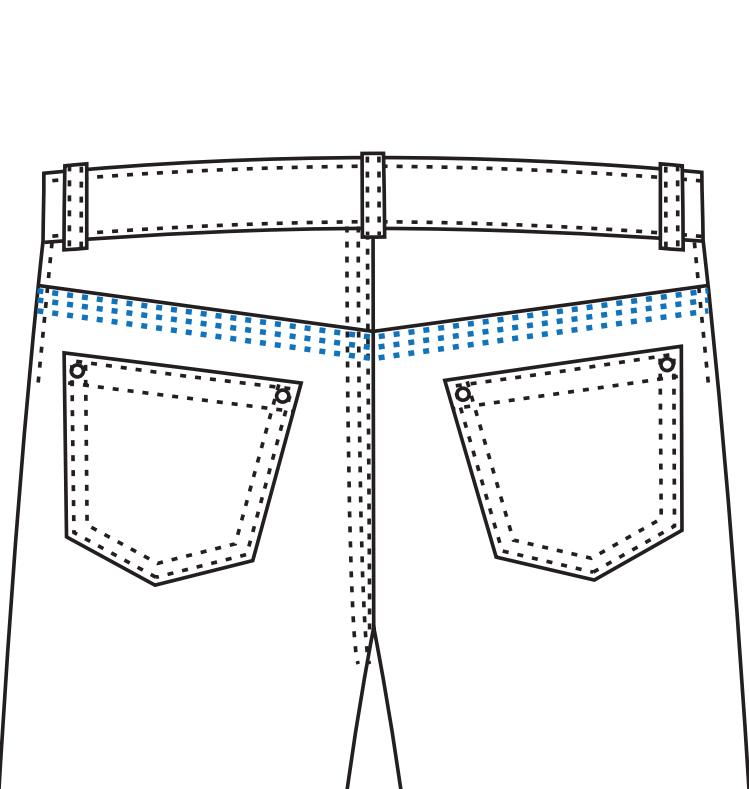

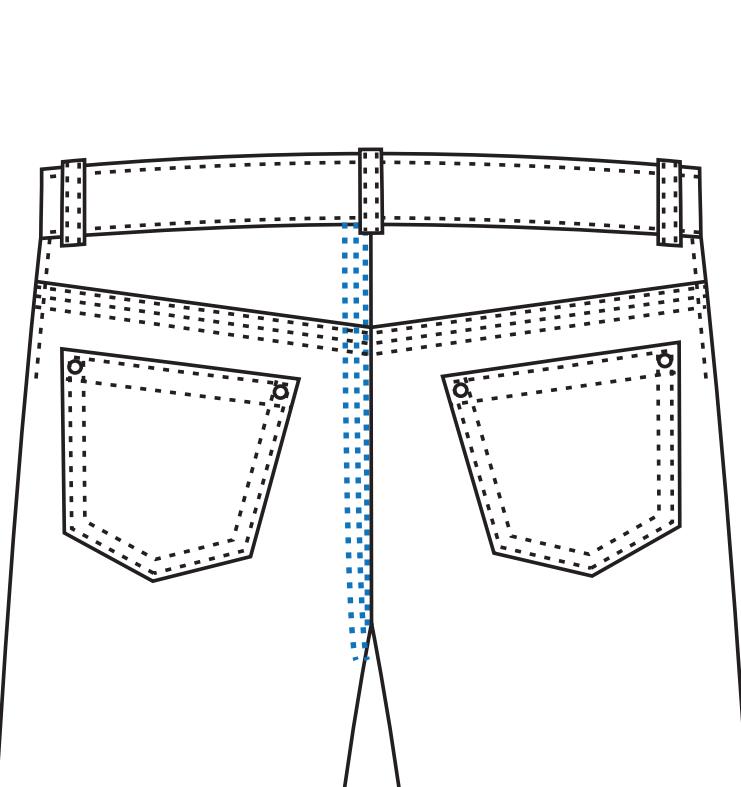

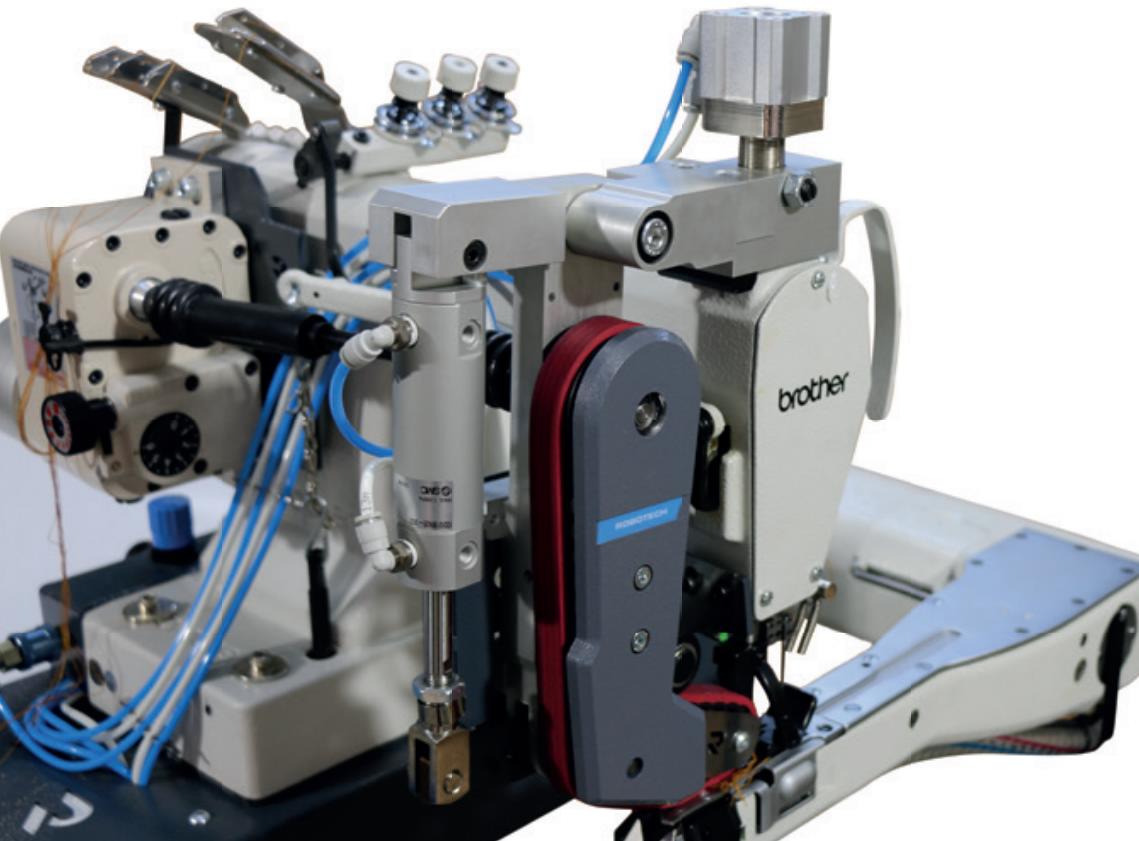

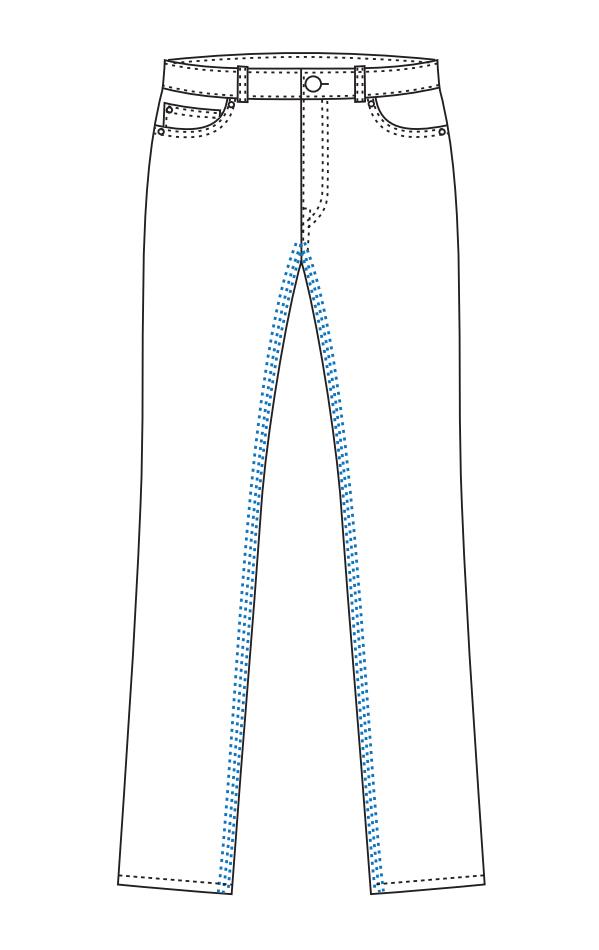

It is specially designed for double layer surfing and/or double stitching, such as slit seam, back seam, inside seam and side seam for jeans, general casual pants, work clothes, denim jackets, etc. The automatic machine is equipped with a special feed system that can check and guarantee the perfect synchronization between the tractor and the feed tooth at any speed. It does this by maintaining fabric alignment and perfectly consistent stitch length with the help of a fabric thickness sensor. In addition, the machine allows cutting at the beginning and end of the chain, ensuring the cleaning of the material thanks to its special suction system positioned at the end of the arm.
Benefits:
- Always high and consistent quality: The lower tractor has two wheels and works in full synchronization with the sewing head, providing perfect feed times and smooth, fast stitching over overlapping pieces. Thus, it prevents the formation of creases or ripples, especially on materials with extra elasticity. The special sensor detects the thickness of the material, and the pressure on the sewing foot is automatically adjusted to avoid missed stitches or irregularities in sewing steps.
- Higher productivity: The maximum speed of the unit is almost 5,000 rpm and is accompanied by an intelligent tractor system that ensures unmatched productivity. The machine can sew 5 seams on the inside in one minute.
- High flexibility: Different gauges of needles offer maximum flexibility. The machine is designed to sew elastic materials, but it is possible to modify it by purchasing conversion kits for heavy and light materials.
- Advanced options for exceptional performance: This machine is equipped with a suction chain cutter for a precise and clean finish. It also offers maximum flexibility thanks to the optional range of needle sizes: 4.8 mm, 7.2 mm, 8.0 mm and 9.6 mm.
Outstanding technical details:
-Needle System:* The machine is equipped with an advanced 3-needle system for high-quality stitching.
- Power System:* Works with needle power, ensuring stability and efficiency in operation.
- Stitch Speed: Reaches an impressive speed of 5,000 rpm, enabling excellent productivity in industrial environments.
- Stitch Length: Variable between 1.0mm and 5mm for adaptability in various stitching applications.
- Standard Needle Gauge: 6.4mm, optimized for precise and even stitching.
- Power Source:* Works at 220V, 50/60 Hz, ensuring global compatibility.
- Air Source:* Requires 6 bar pressure for proper operation.
- Direct Drive Brother motor.
- Pneumatic control of the pressure of the sewing foot on the fabric at the beginning of the stitch.
- Racing Brand suction chain cutter (standard in Pro version).

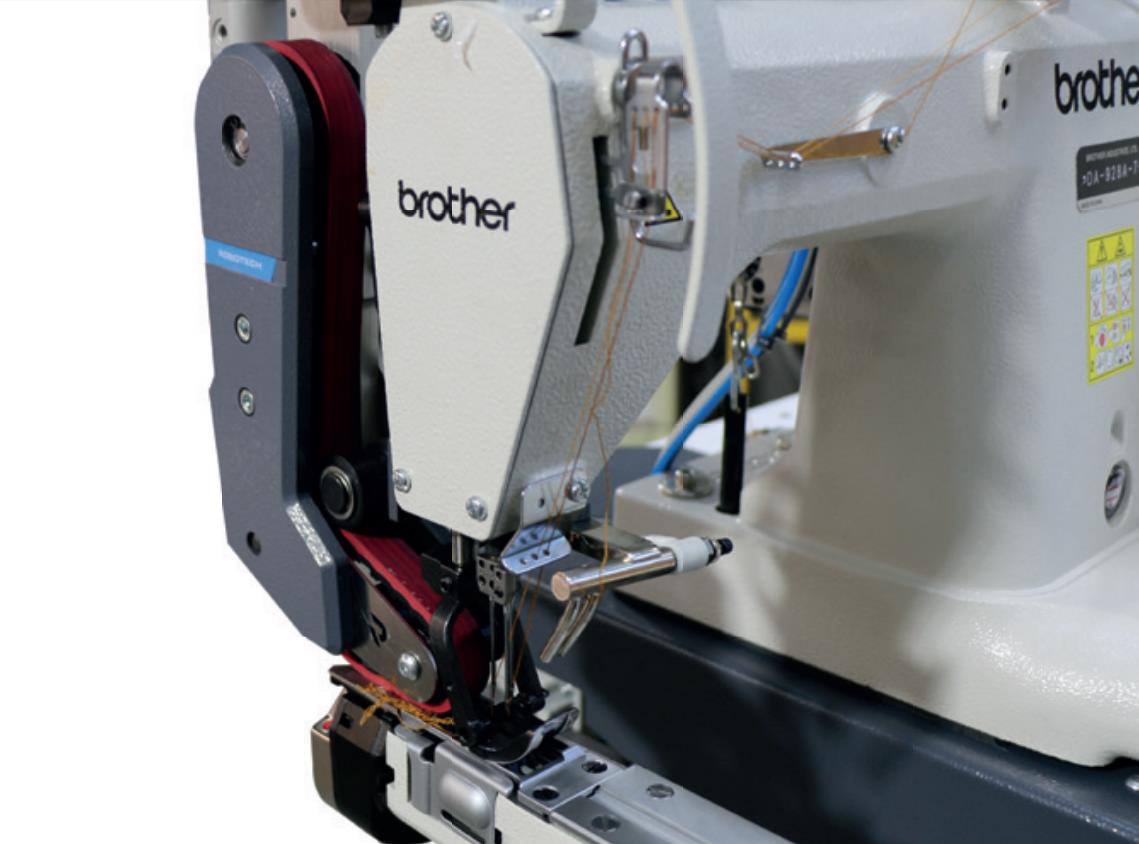

- Pneumatic sewing foot with sensor.
- Pressure regulator.
Optimal dimensions and weights:
With compact dimensions of 66 cm long, 115 cm wide and 130 cm high, the machine is easy to integrate into industrial workspaces. When packed, the dimensions increase slightly to 80 cm x 130 cm x 145 cm. The net weight of approximately 170 kg and the gross weight of approximately 200 kg ensure stability and long-term durability in use.
These technical features and dimensions make this machine the ideal choice for efficient and precise production in the modern textile industry.
