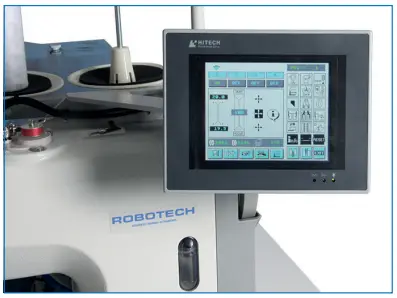

It is for all types of pockets in all segments of the garment industry. The unit enables efficient and flexible sewing of straight flap pockets and inside pockets of men's and women's jackets, coats, blazers, trousers, jeans. It can sew at speeds up to 3,000 spm and is equipped with a Windows-based color graphic touch screen, which makes it easy for the operator to adjust the machine to get perfect pockets for each type of pocket joining operation.
Technical specifications:
- Brother Model C ser sewing head is double needle lock with needle transport
- Easy to use graphics on the operation panel with 50 programming and cycle operations
- Contrai PLC unit
- C series sewing head with AC servo motor (optional with EFKA mini stop motor)
- Clamp Contrai Unit: AC Servo Motor & Driver
- Central knife system controlled by linear motor
- Laser photocell system Measuring pocket size
- Four laser reference lines for front, middle and back seams
- Automatic thread cutting system at the beginning and end of the stitch
- The length of the pocket strap is from 20 mm to 210 mm
- Needle sizes are available as 10mm, 12mm, 14mm, 16mm, 18mm, 20mm
Benefits:

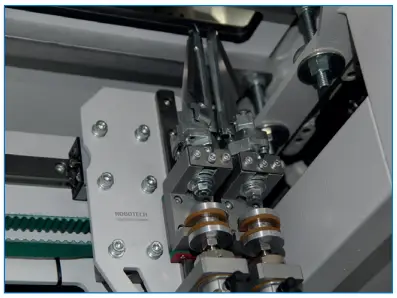

- Stepper motor controlled moving corner knife system (0.1mm micro a ustmentl
- Corner knives and connection on the unit provide three-dimensional adjustment
- Programmable taper at the beginning and at the end or optionally adjustable seam condensation
- Two corner folders are standard
- Quick change system for quick replacement between single and double corner
- Clip holder for pocket flap and pocket bag on the right or left
- Microadjustment unit for right-left Gramer
- The sewing head tilted back allows easy maintenance
- Fold down the folding front assembly for easy access when re-threading and changing the coil.
Options:
Automatic tape feeder
Suction motor (220 AC or 380 ACJ and connection to unit)
Direct connection unit to the system
Universal forklift unit
Rolling device for small parts
Brother Direct Drive Head
Clamp Connect to unit
One piece folder
Set of clip feet for attaching pre-cut zippers (only for 14mm16mm-18mm)
* Special order Needle sizes: 6mm, 8mm and 22mm, 24mm, 26mm
Technical details:
Max. Sewing speed: 3,000 rpm
Max. Stitch length: 0.5 or 3 mm
Stitch type: 301 ( Lockstitch J
Needle sizes: 10 - 20 mm Standard
6 -8 mm / 22 - 26 mm Optional connection voltage:
AC 230 V, 50/60 Hz
Air pressure: 6 bar
Dimensions:
L 140 cm / W 80 cm H: 120 cm
Package size: 164 cm x 84 cm x 145 cm
Net weight of the car: approx. 200 kg
Gross weight of the car: approx. 240 kg
